Battery Accessories
We have a range of Battery Accessories to suit any Battery needs. Cables for joining batteries in Series/Parallel Connection, Battery Protectors, Battery Boxes, Termainl Lugs and Covers as well as a range of other items.
Battery Low Voltage Disconnect
Low voltage disconnect switches are designed to protect batteries from excessive draw. Think of them as similar to circuit protection devices like fuses and breakers, but instead of terminating connection when voltage spikes, they disconnect when voltage drops too low, preventing damage to the batteries and load. To do this, a semiconductor switching circuit measures battery voltage; when it dips too low, predetermined auxiliary loads are switched off to ensure the battery has enough power left for engine starting.
This prolongs battery life by preventing damage due to excessive discharge and eliminates the need for separate timer or voltage sensing devices which simplifies wiring and installation and allows for a streamlined design.
Victron Smart BatteryProtect
The Smart BatteryProtect disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine.
When using Bluetooth to program the Smart BatteryProtect any required engage/disengage levels can be set.
Alternatively, one of nine predefined engage/disengage levels can be set with the programming pin (see manual)
If required, Bluetooth can be disabled.
The Smart BatteryProtect is a uni-directional device. It can only deal with current in one direction, so either current to a load, or current from a charger, but not both currents at the same time. In addition to this, current only can only flow from the IN terminal to the OUT terminal. In case of use with a load, the battery connects to the IN terminal, and in case of use with a charger, the charger connects to the IN terminal.
A special setting for Li-ion batteries: In this mode the BatteryProtect can be controlled by the VE.Bus BMS.
Note: the BatteryProtect can also be used as a charge interrupter in between a battery charger and a Li-ion battery. See connection diagram in the manual
Maximum continuous load current* |
65A |
|---|---|
Peak current (during 30 seconds) |
250A |
Operating voltage range |
6 - 35V |
Current consumption |
BLE On: When on: 1.4 mA When off or low voltage shutdown: 0.9 mA BLE Off: When on: 1.2 mA When off or low voltage shutdown: 0.7 mA |
Alarm output delay |
12 seconds |
Maximum load on alarm output |
50 mA (short circuit proof) |
Load disconnect delay |
90 seconds (immediate if triggered by the VE.Bus BMS) |
Load reconnect delay |
30 seconds |
Default thresholds |
Disengage: 10.5V or 21V Engage: 12V or 24V |
Operating temperature range |
Full load: -40°C to +40°C (up to 60% of nominal load at 50°C) |
IP rating |
Electronics: IP67 (potted) Connections: IP00 |
Connection |
M6 |
Mounting Torque |
5 Nm |
Weight |
0.2 kg (0.5 lbs) |
Dimensions (H x W x D) |
40 x 48 x 106 mm |
Blue Sea m-LVD Low Voltage Disconnect
Senses low battery voltage and automatically disconnects devices to save power for starting or to preserve battery life
A dead battery is one of the most common reasons for a tow. Don't get stranded with a dead battery.
The m-LVD senses low battery voltage and automatically disconnects non-essential devices to save power for starting or to preserve battery life.
The m-LVD is ideal for any single battery boat or vehicle that wants to avoid getting stranded with a dead battery.
- Status light in both m-LVD and Remote Control Switch provides visual warning of low voltage state prior to disconnect
- Alarm output available for audible warning of low voltage state prior to disconnect (optional alarm required)
- Remote Control Switch Functions:
- Disconnect Voltage Adjustment - Sets desired disconnect voltage
- Override - Temporarily delays circuit disconnect for 10 minutes
- OFF - Temporarily disconnects circuits until voltage rises
- Override or OFF - Silences alarm (optional alarm required)
- Case design allows surface, front panel, or rear panel mounting
- Rear insulating cover protects rear contacts
- Waterproof - rated IP67 for temporary immersion
Nominal Voltage |
12V DC |
|---|---|
Amperage Operating Current |
95mA (Connected) 4mA (Open) |
Continuous Rating |
65A |
Intermittent Rating |
115A (5 Min.) |
Maximum Cable Size |
1/0 AWG (50mm2) |
Terminal Stud Material |
Tinned Brass |
Terminal Stud Length |
7/16 in (11.11 mm) |
Terminal Stud Size |
1/4" - 20 (M6) |
Terminal Stud Torque |
60 in-lb (6.78 Nm) |
Weight |
0.77lb (0.35 kg) |
Enerdrive ePOWER Low Battery Cutouts
The ePOWER Low Battery Cutoff protects your batteries from non essential loads before the battery is completely discharged causing damage to batteries and potently denying your engine cranking power. These Low Battery Cutouts also protect connected electrical appliances against over voltage. The voltage load is disconnected whenever the DC voltage goes beyond 16V (12V mode) or 32V (24V mode)
Microprocessor Controlled
The ePOWER LBC is microprocessor controlled with 10 different programs that engage or disengage the voltage load over several different voltage parameters.
Additionally, the ePOWER LBC range offers features like:
- Overvoltage Protection
- Ignition proof (no relay, no spark)
- Delayed alarm output
- Delayed load disconnect
Applications
- Recreational vehicles
- Service vehicles
- Maritime applications
EN-LBC1224-10 |
EN-LBC1224-40 |
EN-LBC1224-60 |
EN-LBC1224-200 |
|
Auto Voltage Detect |
8 - 20V -> 12 Volt Mode 20 - 35V -> 24 Volt Mode |
|||
Max Load (shut down current) |
10 - 15A |
40 - 45A |
60 - 65A |
200 - 210A |
Peak current |
75A @ 12V |
120A |
120A |
480A |
Under voltage disconnect voltage |
12 Volt Mode Adjustable starting from 9.5V 24 Volt Mode Adjustable starting from 19.5V |
|||
Over voltage disconnect voltage |
12 Volt Mode: 16V Cutoff 24 Volt Mode: 32V Cutoff |
|||
Current consumption |
Output Active: 4mA Output Inactive: 2mA |
|||
Shutdown at overload / short circuit |
After 5 seconds. (Switch on again 1 minute) |
|||
Weight |
20 g |
185g |
185g |
730g |
Dimension LxWxH |
62mm x 27mm x 9mm |
82mm x 65mm x 41mm |
82mm x 65mm x 41mm |
120mm x 112mm x 61mm |
Shutdown at overload / short circuit |
2% |
|||
Current accuracy |
20% |
|||
IP-code |
IP66 |
|||
Electro Battery Protector 12V (40A)
FEATURES
- Stop batteries from being over discharged
- Switches load on/off automatically
- Optional remote on/off feature
- Can also operate as a master switch for 12V circuits
- Used by many caravan OEMs
Model |
BP-400 |
|---|---|
Input (A) |
40A |
Input (V) |
12V |
Disconnect Voltages |
10V / 10.5V / 11V / 12V |
Reconnect Voltages |
Disconnect Voltage + 1V |
Weight |
0.4 kg |
Dimensions (L x W x H) |
85 x 70 x 35 mm |
Battery Boxes

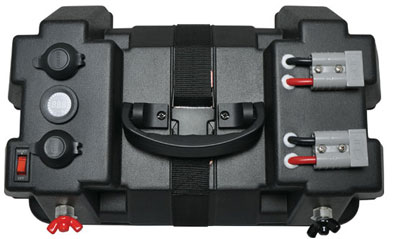

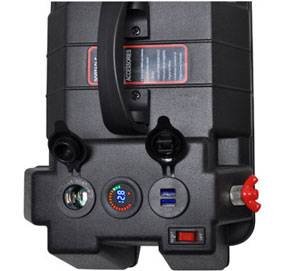

Battery Box 12V Portable Power
This 12V battery box features all the common connections that would typically be required for outdoor recreation power needs.
It is capable of holding a deep cycle battery up to 125Ah (sold separately), which can be secured in place with the supplied webbing strap.
Once fitted with a battery, the box can be used to power campsite equipment and connected to a solar panel for recharging.
The box comes with carry handles so its easily portable and is fitted with a variety of connections for powering your portable appliances.
These include two 50A Anderson plugs, insulated bolt terminals (fitted with wing nuts) and a 12V car accessory socket with over current protection in-built.
For smaller devices such as phones and tablets two USB ports are provided with up to 2.4A charging current.
Its also fitted with a voltmeter to help monitor the battery level.
External Dimensions: 424W x 306H x 251Dmm.
Not all battery boxes are the same! The Powerhouse unit has some key features that are not found on many models in the Australian market:
- 2 x 50A maxi blade fuses in circuit for extra protection.
- Lid with dual side clips for extra secure fit.
- High current output USB ports (2 x 2.4A) to charge high capacity devices such as tablets.
- Bar graph style LED volt meter.
Features
- Suits batteries up to 125Ah
- Dual 50A Anderson Plugs
- 12V Cigarette Socket
- 2 x 50A maxi blade fuses in circuit for extra protection.
- Lid with dual side clips for extra secure fit.
- Dual USB Ports with high current output (2 x 2.4A)
- Handy bar graph LED Voltmeter
- Circuit Breaker Switch

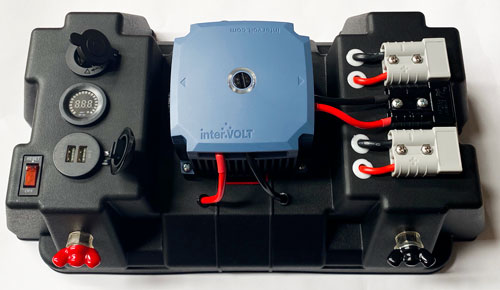

Custom Battery Box with Intervolt 25A DC to DC Charger Inbuilt
This 12V battery box features all the common connections that would typically be required for outdoor recreation power needs.
The box comes with an Australian made Intervolt DCC-Pro 25A DC to DC Charger one of the best units on the market, which also has solar input capabilities due to its inbuilt solar regulator.
It is capable of holding a deep cycle battery up to 125Ah (sold separately), which can be secured in place with the supplied webbing strap.
Once fitted with a battery, the box can be used to power campsite equipment and connected to a solar panel for recharging.
The box comes with carry handles so its easily portable and is fitted with a variety of connections for powering your portable appliances.
These include two 50A Anderson plugs, insulated bolt terminals (fitted with wing nuts) and a 12V car accessory socket with over current protection in-built.
For smaller devices such as phones and tablets two USB ports are provided with up to 2.4A charging current.
Its also fitted with a voltmeter to help monitor the battery level.
- 2 x 50A maxi blade fuses in circuit for extra protection.
- Lid with dual side clips for extra secure fit.
- High current output USB ports (2 x 2.4A) to charge high capacity devices such as tablets.
- Bar graph style LED volt meter.
- Red Anderson Plug for Solar Input
- Black Anderson Plug for Vehicle Input
Features
- Intervolt DCC-Pro 25A DC to DC Charger with Solar Input
- Red 50A Anderson Plug to connect Solar Panel
- Black 50A Anderson Plug to connect Vehicle input
- Suits batteries up to 125Ah
- Dual Grey 50A Anderson Plugs to run items from.
- 12V Cigarette Socket
- 2 x 50A maxi blade fuses in circuit for extra protection.
- Lid with dual side clips for extra secure fit.
- Dual USB Ports with high current output (2 x 2.4A)
- Handy bar graph LED Voltmeter
- Circuit Breaker Switch

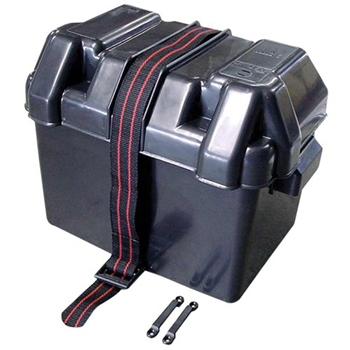

Plain Battery Boxes
Quality, vented, marine battery boxes manufactured from high density reinforced polyethylene, which is impervious to battery acids.
This product includes:
- Sturdy carrying handles
- Two vents and the lid has 4 recesses to allow for cable entry
Also supplied complete with strap, mounting cleats and stainless steel fittings
| Outside Dimensions* (mm) (L x W x H) |
Base Size (mm) (L x W) |
Inside Dimensions (mm) (L x W x H) |
|
|---|---|---|---|
Standard |
330 x 230 x 260 |
285 x 195 |
275 x 190 x 195 |
Large |
417 x 230 x 285 |
340 x 195 |
335 x 190 x 220 |
Brass Battery Terminal Lugs
UniLug 2 Up Battery Terminal Lugs
Two Up battery terminal lugs are purpose designed for dual battery installations where it is not desirable to cut or modify the factory battery leads or terminals.
The concept allows factory strap type battery terminals to be fitted to a special tapered adaptor at the same time providing an additional terminating post to connect auxiliary batteries and/or ancillary equipment.
Forged not cast and built to last!
- Forged from high grade brass for ultimate strength and greater conductivity.
- Mating surfaces are machined then satin nickel plated for superior performance.
- Moulded Nylon lug cover protects against accidental short circuit.
- Design allows wiring to rotate through an arc of 180°c at either terminating post.
Material - Lug Assembly |
Forged JIS 3771 Brass Satin Nickel Plating |
|---|---|
Material - Adaptor Post |
Machined JIS C3604 Brass Satin Nickel Plated |
Material - Protective Cover |
Impact/Temperature resistant PA-6 (Nylon) |
Hardware |
Cover screw SUS304, all other Zinc Plated Steel |
Dimensions |
35 H x 103 W x 200 L mm |
Weight |
200g (with packaging) |

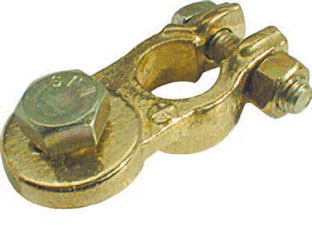

8MM Brass Battery Terminal Lugs
Solderless brass battery terminals relinquish the need to use solder lugs or crimping tools.
Simply install the wiring into the terminal barrel and the built-in bolt holds the wire in place.
- Positive & Negative Terminals indicated by Red and Black Wing Nuts
- Allows battery to be disconnected without removing terminal from post.
- Brass construction provides low resistance connections, while tin plating offers the best corrosion protection available.
- Using brass battery terminals, heat shrink, and lugs on existing or new wire allows you to specifically configure any battery cable.
- Strong and reliable, brass battery terminals are excellent for high moisture and marine environments.
- Lug stud size 8mm, suits cable to 1 Gauge (40mm2)
10MM H/D Brass Battery Terminal Lugs
Solderless brass battery terminals relinquish the need to use solder lugs or crimping tools.
Simply install the wiring into the terminal barrel and the built-in bolt holds the wire in place.
- Positive & Negative Terminals indicated by Red and Black Wing Nuts
- Allows battery to be disconnected without removing terminal from post.
- Brass construction provides low resistance connections, while tin plating offers the best corrosion protection available.
- Using brass battery terminals, heat shrink, and lugs on existing or new wire allows you to specifically configure any battery cable.
- Strong and reliable, brass battery terminals are excellent for high moisture and marine environments.
- Lug stud size 10mm, suits cable to 1 Gauge (40mm2)

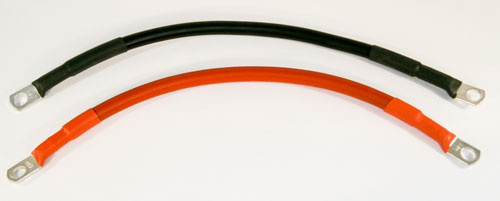

Battery Cables for Connecting Batteries in Series or Parallel
Pre-made battery connection cables for almost every application you can think of, automotive, light trucks, RV's, golf carts, industrial equipment e.t.c.
Pre-made cables are the fast and easy answer to getting equipment back in service quickly.
All Pre-made cables made from the highest quality Australin made Oxygen free plain Copper Wire to AS/NZS 1125 that is RoHS compliant and also come with heat shrink on the ends.
There are 3 different sizes of cables available, 25mm2, 35mm2 or 50mm2, and these come in 2 different sizes, 300mm and 600mm.
Alternative cable sizes and lengths available upon request. (subject to different pricing that whats listed below)
Battery Terminal Covers
Blue Sea Stud CableCap Insulators
Insulates single stud on alternators, starters, windlasses and high amperage termination points
- Insulate stud type connectors on alternators, starters, windlasses and other high amperage devices
- Material: PVC
p/n |
4008 |
4009 |
4010 |
4011 |
4012 |
4013 |
4014 |
4015 |
|---|---|---|---|---|---|---|---|---|
Colour |
Red |
Black |
Red |
Black |
Red |
Black |
Red |
Black |
Cable Size (MM) |
1mm - 6mm |
9mm - 20mm |
25mm - 70mm |
95mm - 120mm |
||||
Cable Size (AWG) |
18B&S - 10B&S |
8B&S - 4B&S |
2B&S - 00B&S |
000B&S - 0000B&S |
||||
Weight |
0.30lb (0.14 kg) |
0.30lb (0.14 kg) |
||||||

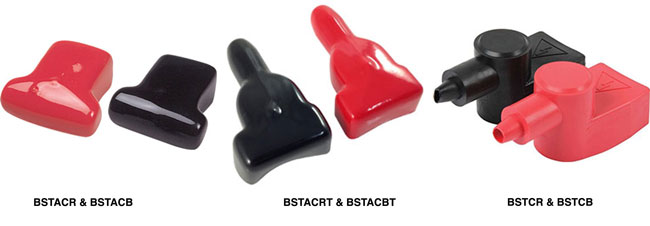

Battery Terminal Covers
BSTACBT & BSTACRT - End entry battery terminal covers
For cable up to 12.7mm diameter
Protects against shorting out and corrosion of battery terminals
BSTACB & BSTACR - Side entry battery terminal covers
Protects against shorting out and corrosion of battery terminals
BSTCB & BSTCR - Trojan T105 Battery Terminal Covers
Protects against shorting out and corrosion of battery terminals
Battery Clamps
Narva Fully Insulated Battery Clamps - 500A
Thick gauge pressed metal with heavy-duty brass plated steel jaws and shunt.
Includes cable lug for fast termination and features extra fine teeth for maximum grip
Individually packed
Rated to 500A
Clamp Length: 160mm
2-Piece 50 Amp Set of Battery Clamps
These Battery Clamps are great for small battery charging and equipment testing.
They can easily be connected with leads, but the 50 amps these clamps possess don't make them ideal for jumper leads.
Sold in pairs with insulated grips, they are colour coded for positive (red) and negative (black).
- 50 Amp
- Twin pack
- Ideal for small battery charging/testing
- Insulated grips
- Colour coded, red & black
Single 30 Amp & 15 Amp Battery Clamps
These 30 & 15 Amp Battery Clamps are great for small battery charging and testing of equipment.
They can easily be connected with leads, but are not suitable for jumper leads.
Sold individually with insulated grips, they are colour coded for positive (red) and negative (black).
- 30 & 15 Amp
- Individually sold
- Ideal for small battery charging/testing
- Insulated grips
- Colour coded, red & black

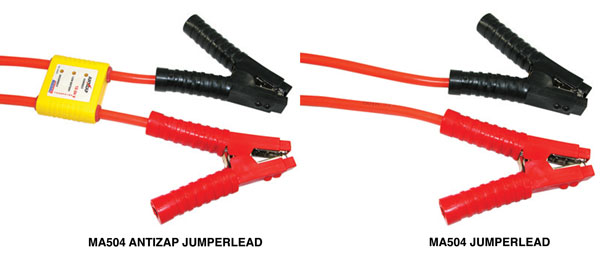

MA504 & MA504AZ 4m x 50mm Heavy Duty Jumperleads (w/AntiZap & w/o AntiZap)
MA504 4m x 50mm Jumper Lead:
- Comes with carry case
- Double insulated fine strand cable for superior flexibility and performance.
- Nitrile modified PVC Sheath.
- High temperature resistance (up to 105C)
- Crimped, heavy gauge solid copper lugs.
- Fully insulated 600 Amp clamps.
MA504AZ 4m x 50mm Jumper Lead with AntiZap:
- Comes with carry case
- Double insulated fine strand cable for superior flexibility and performance.
- Nitrile modified PVC Sheath.
- High temperature resistance (up to 105C)
- Crimped, heavy gauge solid copper lugs.
- Fully insulated 600 Amp clamps.
- Four function Antizap: Correct Connection, Incorrect connection, Low donor battery & High speed surge protection.
Battery Hydrometer
Recognized as the most accurate way of testing the charge in a battery, this Battery Hydrometer is a cost effective way to identify problems with a battery performing poorly.
This hydrometer is used to test the state of charge of each battery cell.
With proper instructions and the easy-to-read float scale, this product very easy to use.
- Checks the charge level of a battery by testing the specific gravity of the battery fluid.
- Calibrated graduations for accurate measurement.
- Color coded float measures specific gravity
- Glass tube does not discolor or tarnish
- Acid resistant rubber bulb and tip
- Simple and easy to read float scale.
